System Health Checks & Loop Prevention

Netifd phantom WAN guard, memory monitoring, and baseband crash recovery.

3 min read · Updated Oct 21, 2026

System Health Checks & Loop Prevention

QManager protects the operating system against common embedded Linux bugs.

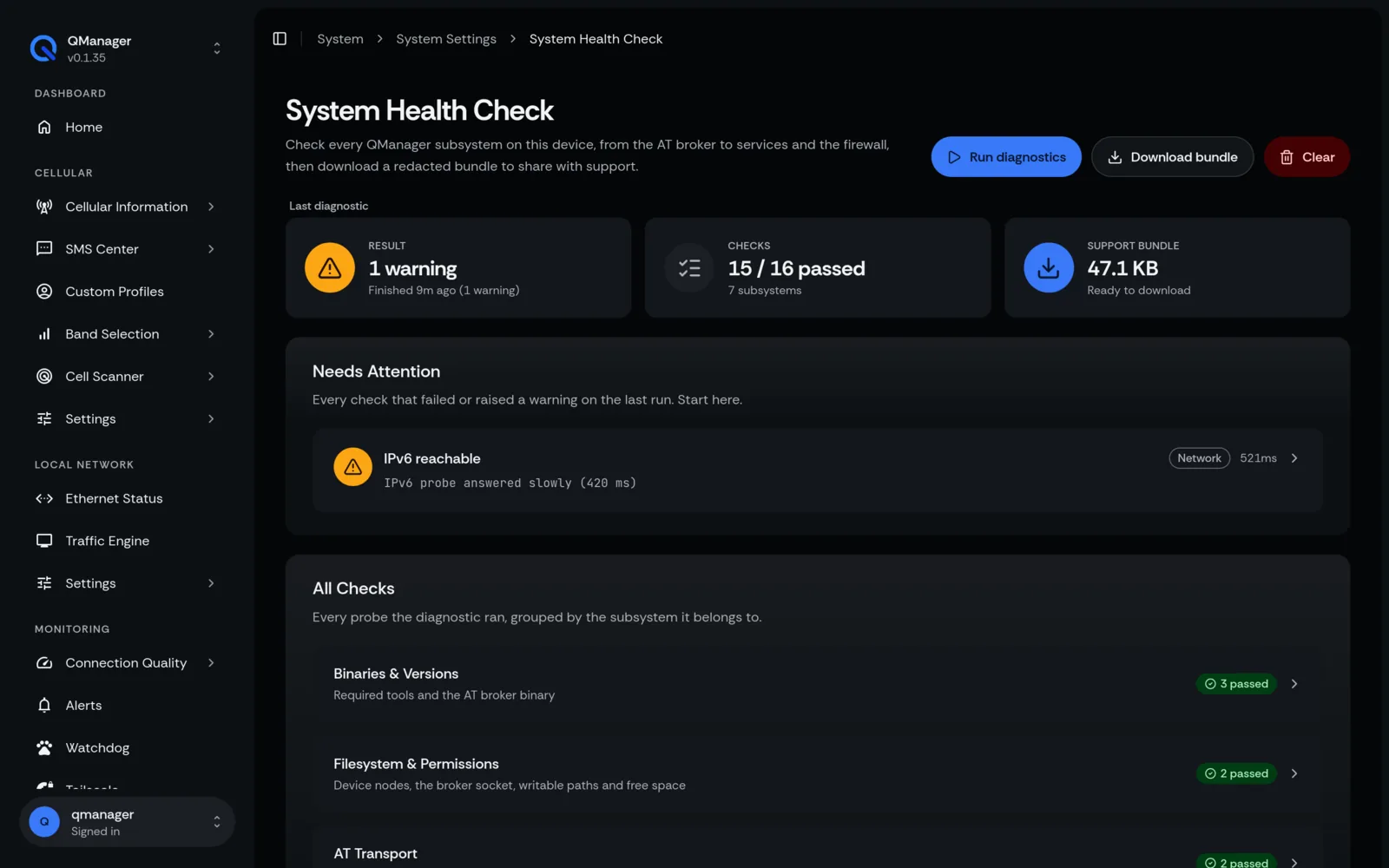

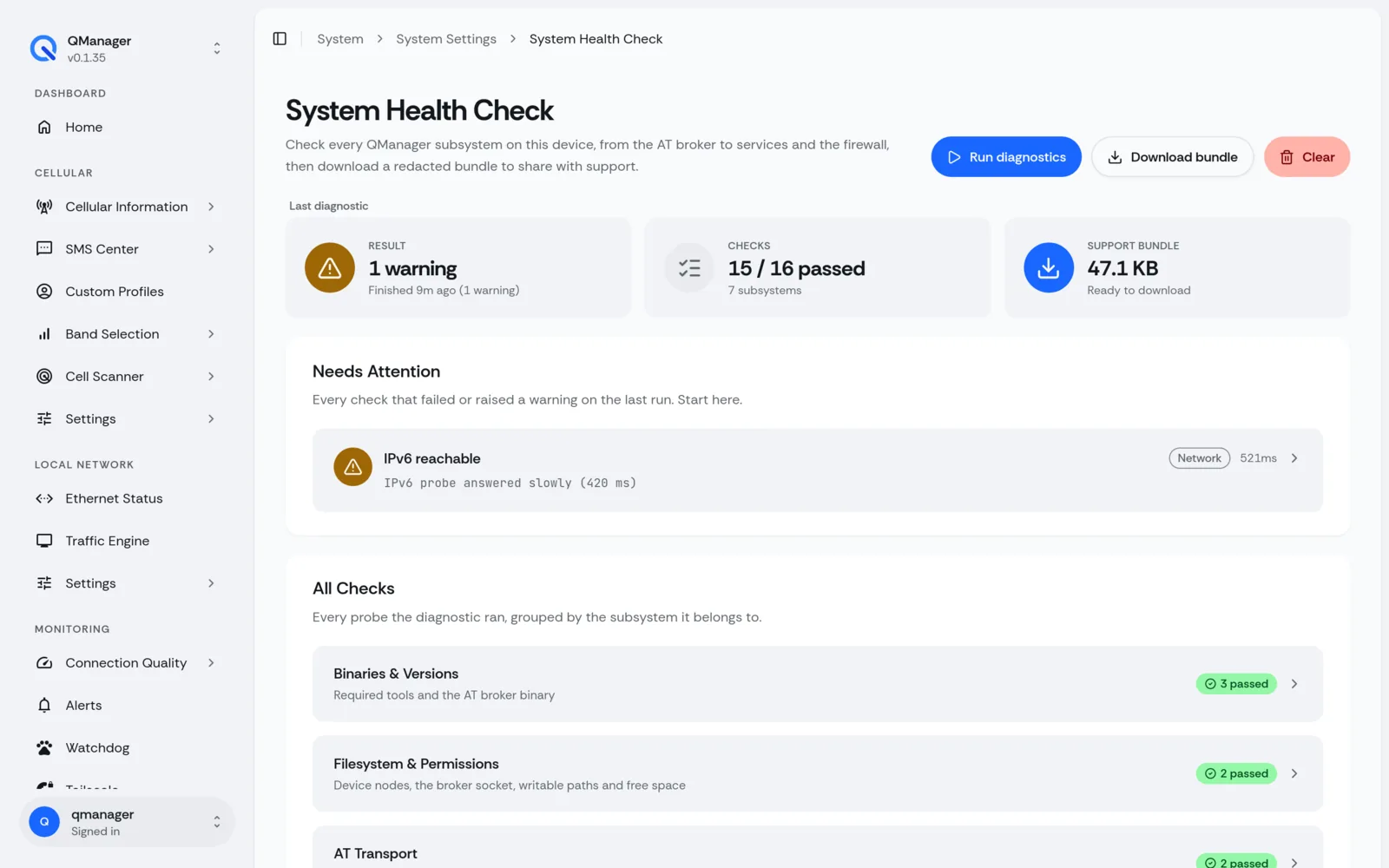

QManager RM551E System health check screen — RM551E: Run a full self-test and download a support bundle.

WAN Interface Guard (OpenWRT)#

In OpenWRT, when a modem is re-initialized, netifd frequently generates duplicate "phantom" WAN interfaces (e.g. wan_4, wan_6) that spin in high-CPU retry loops.

QManager's WAN Guard monitors ubus network events, detects orphaned interfaces, and cleans them up automatically.

Memory & Storage Monitoring#

Tracks /tmp and /var/log usage to prevent RAM disk overflow.
Automatically trims rotated log files.
Displays live system load average and temperature readouts from modem thermal zones.

Screens in QManager#

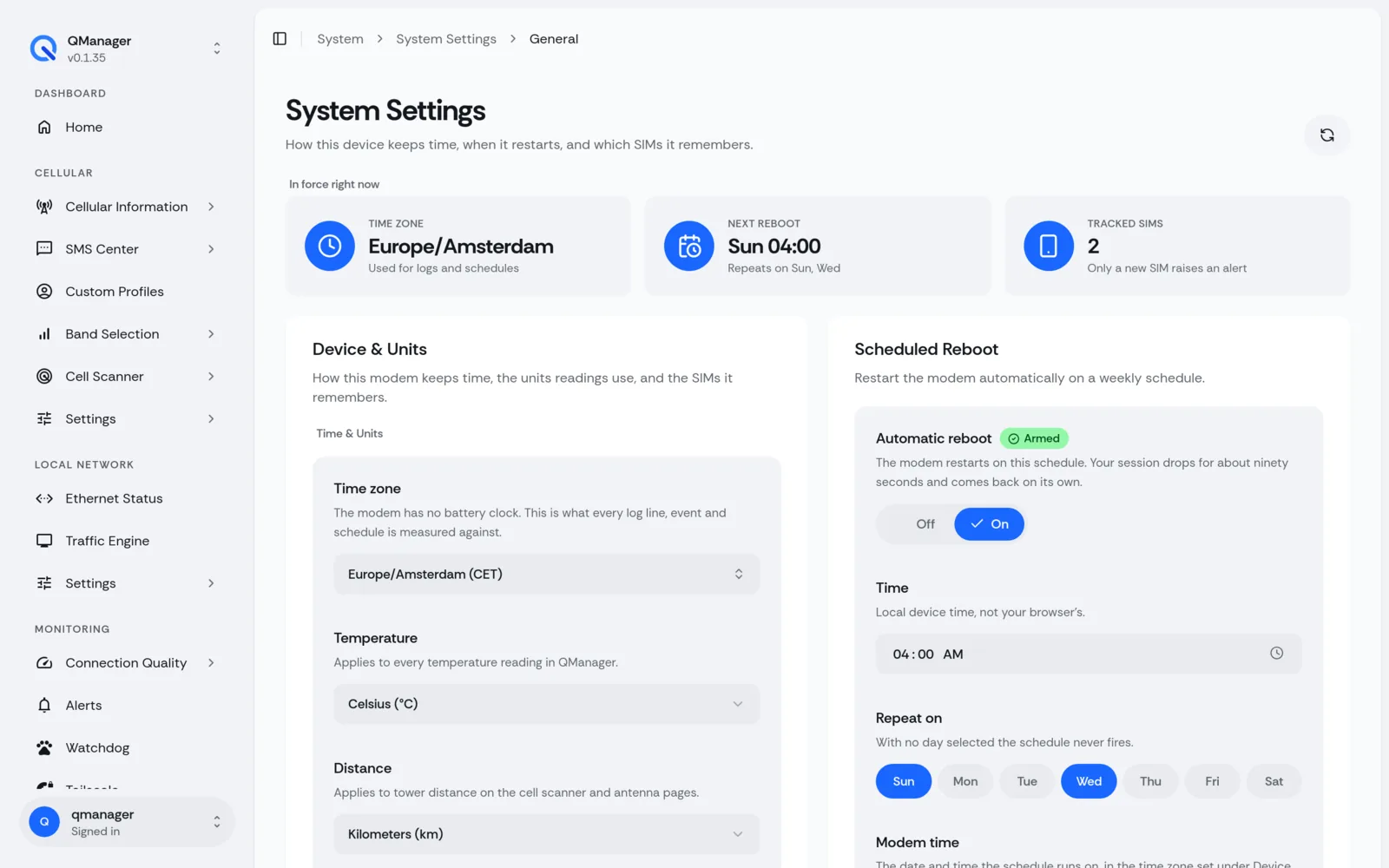

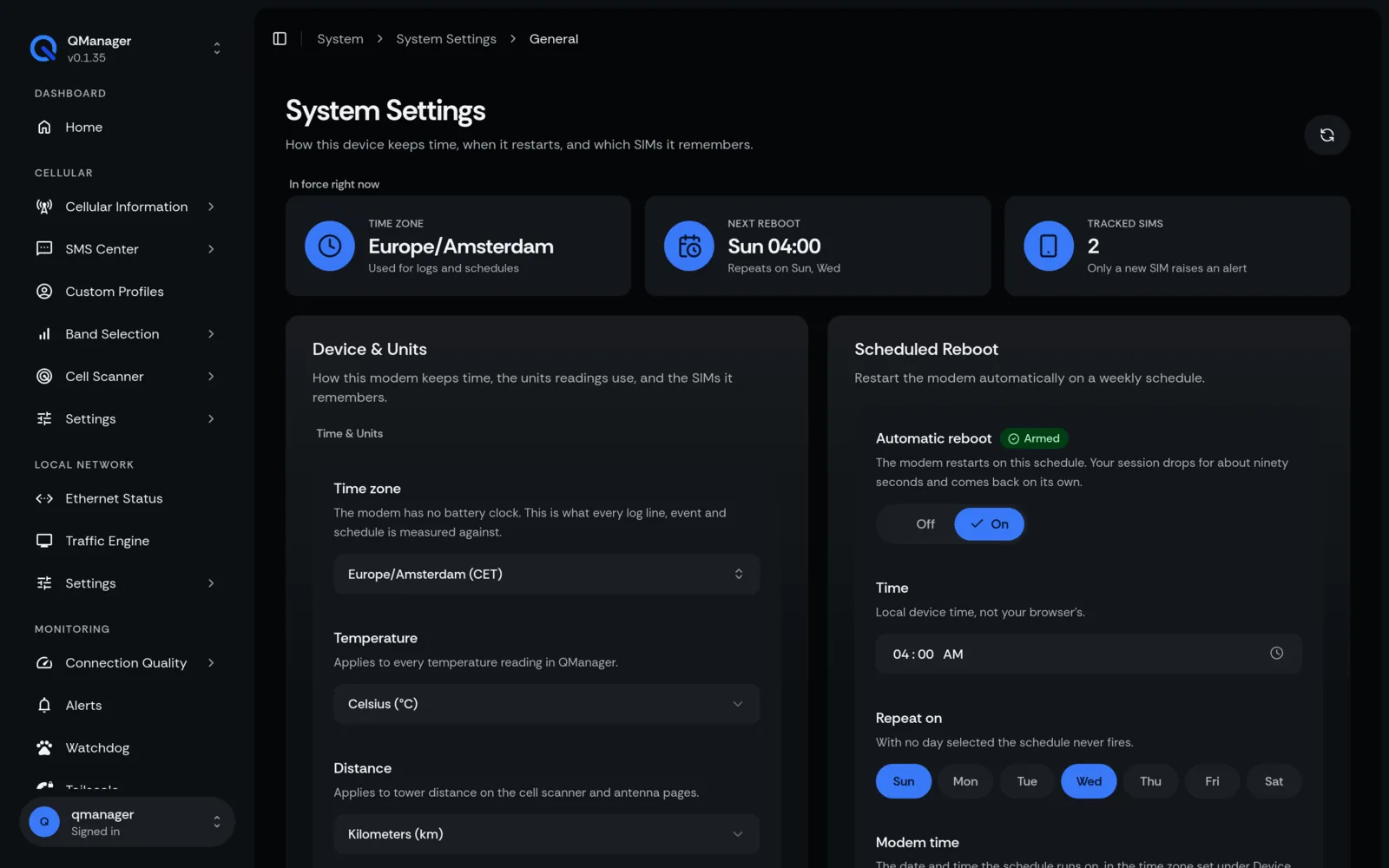

QManager RM551E System settings screen — RM551E: Set the time zone and units, and schedule automatic reboots.

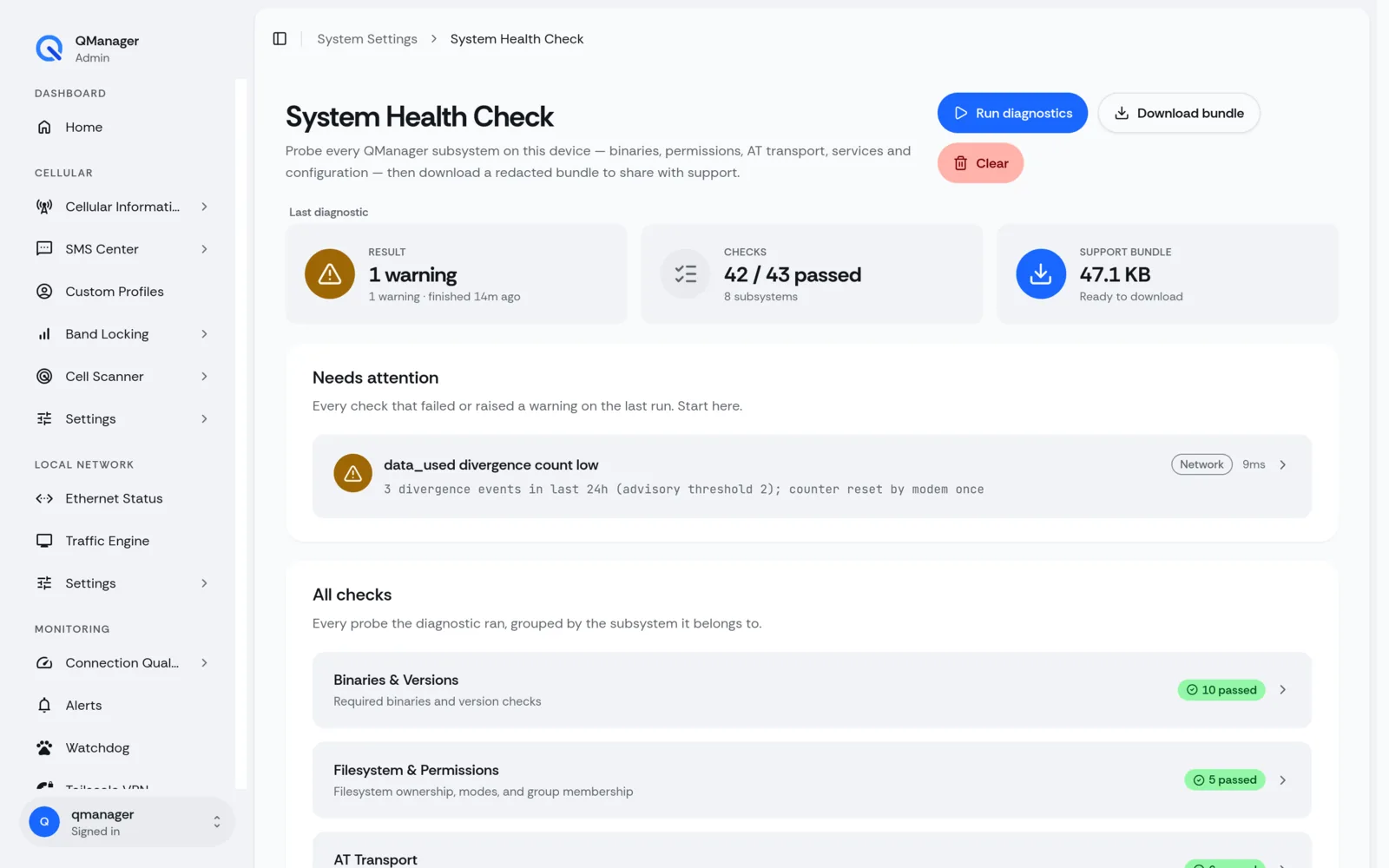

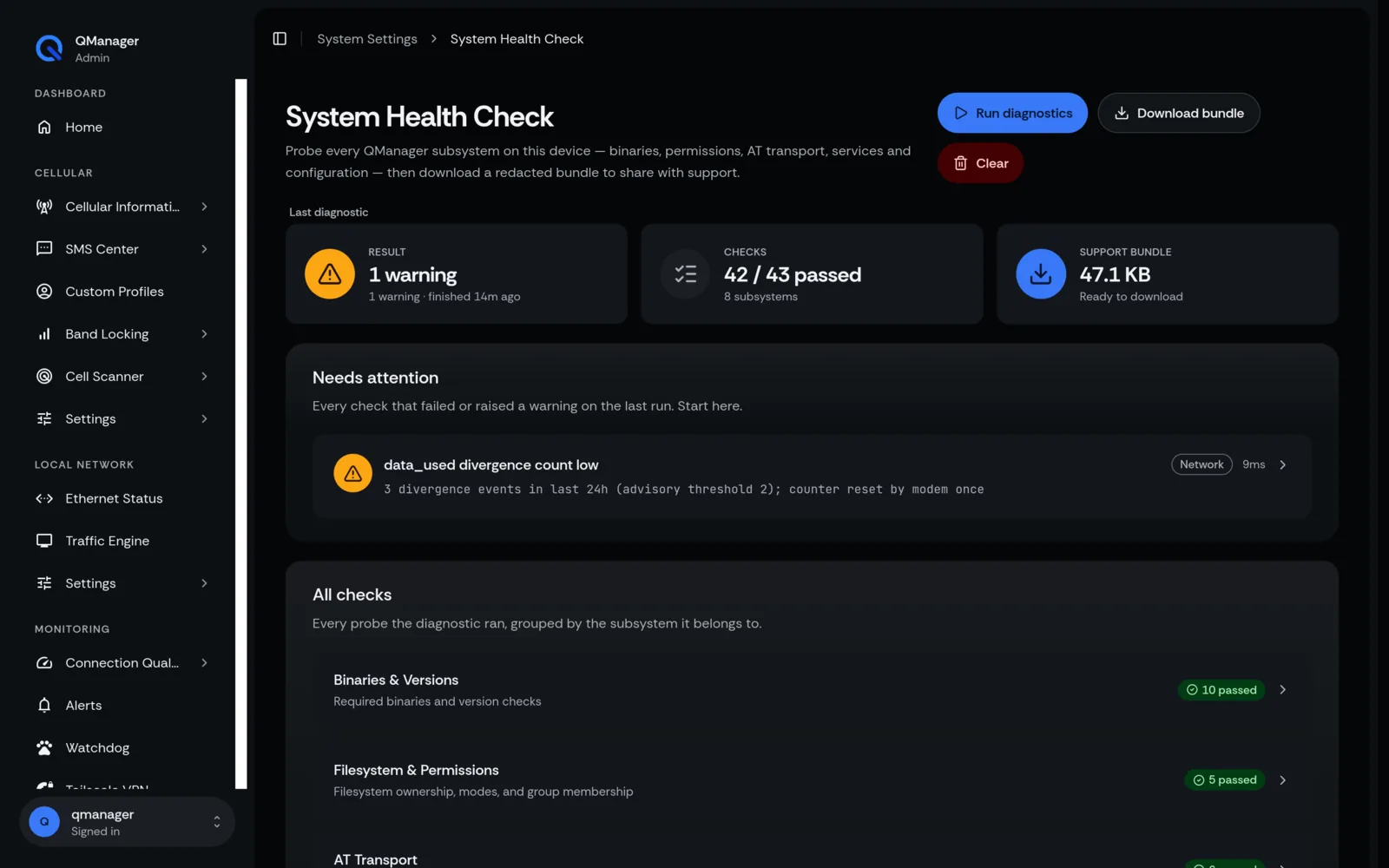

QManager RM520N System health check screen — RM520N: The System Health Check tests every QManager subsystem and builds a support bundle.
