Universal (RM551E & RM520N)

Diagnostics, Ping, Traceroute & Sysfs Inspector

Built-in network diagnostic utilities, ICMP ping testing, MTU path discovery, and sysfs radio inspection.

4 min read · Updated

Diagnostics, Ping, Traceroute & Sysfs Inspector

A full suite of network troubleshooting utilities built directly into the web UI.

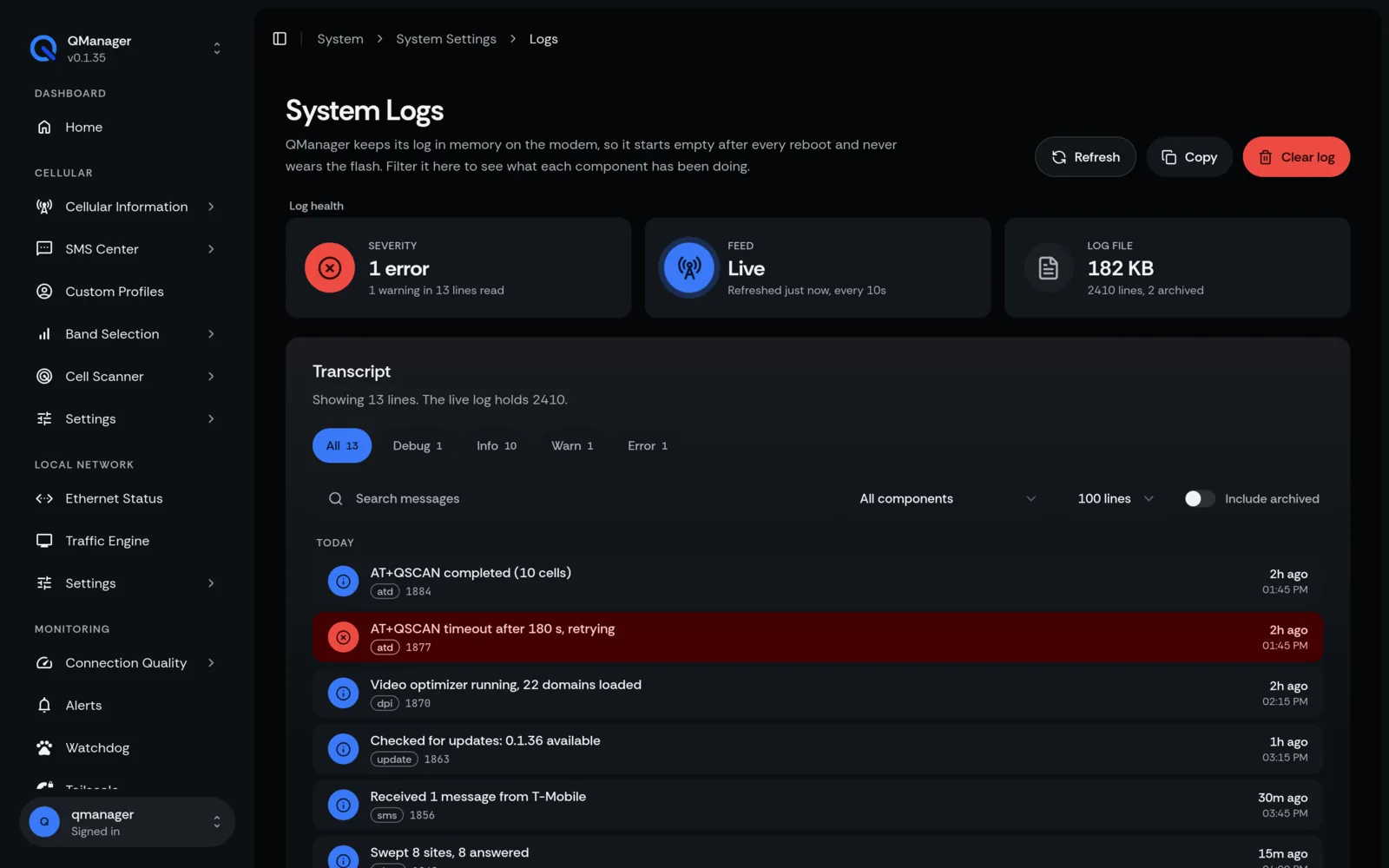

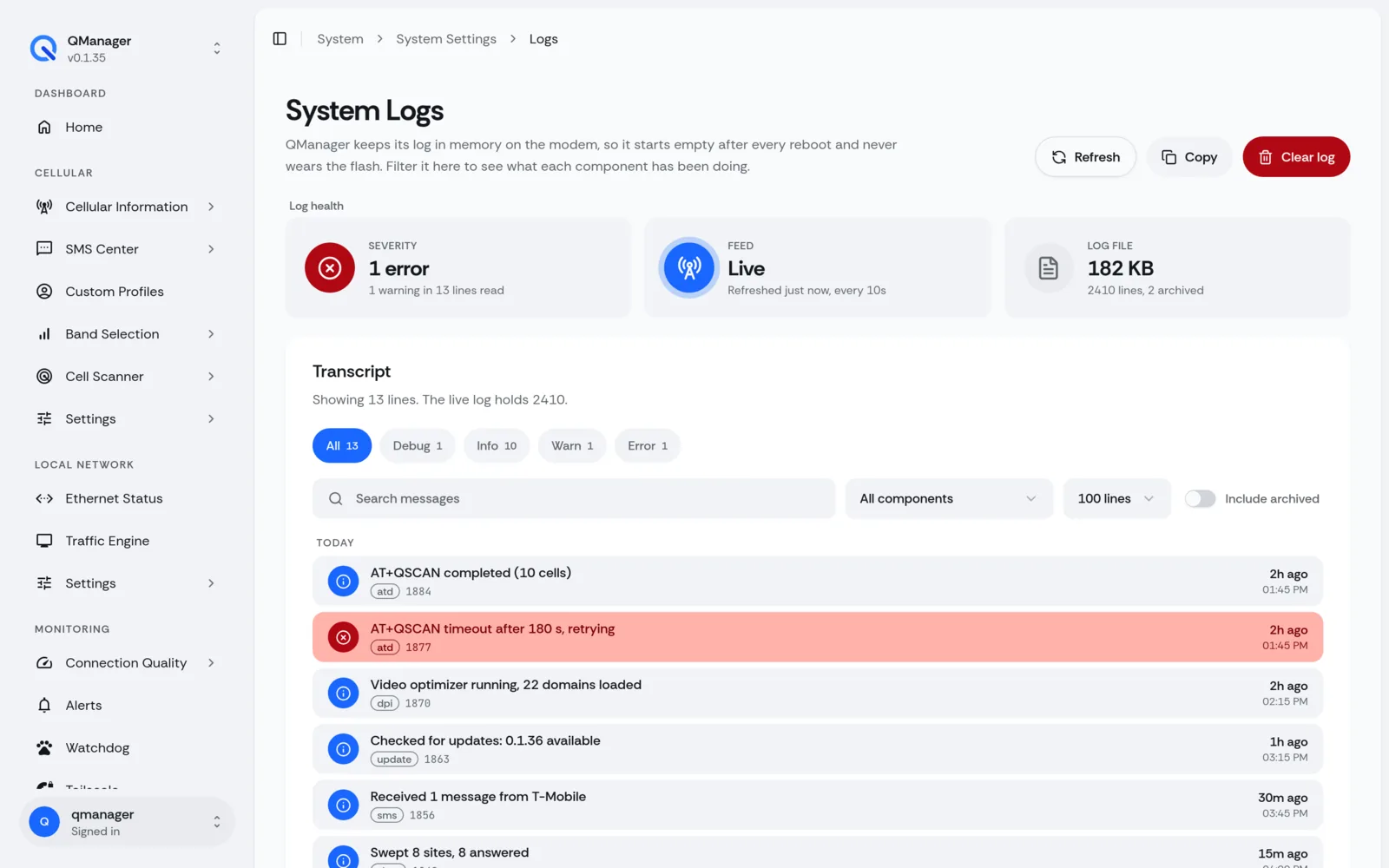

QManager RM551E System logs screen
RM551E: Filter QManager's log by severity and component to see what each part has been doing.

Network Ping & Traceroute#

In Tools > Diagnostics:

  • Continuous Ping: Measure latency, jitter, and standard deviation against customizable target hosts (e.g. 1.1.1.1, 8.8.8.8).
  • Traceroute: Map out every network hop between your modem and target destination to identify carrier packet loss.
  • DNS Lookup: Verify resolution time and returned IP addresses.

Sysfs Radio Node Inspector#

On the RM520N-GL, QManager can inspect raw kernel sysfs radio nodes:

  • /sys/class/net/rmnet_data0/ statistics.
  • Hardware temperature sensors (MDM core, PA thermal sensors).
  • Transmit and receive byte counters with error drop rates.

System Log Viewer & Search#

View unified system logs (logread on OpenWRT, journalctl on RM520N) with instant keyword filtering to diagnose connection drops and watchdog events.

Screens in QManager#

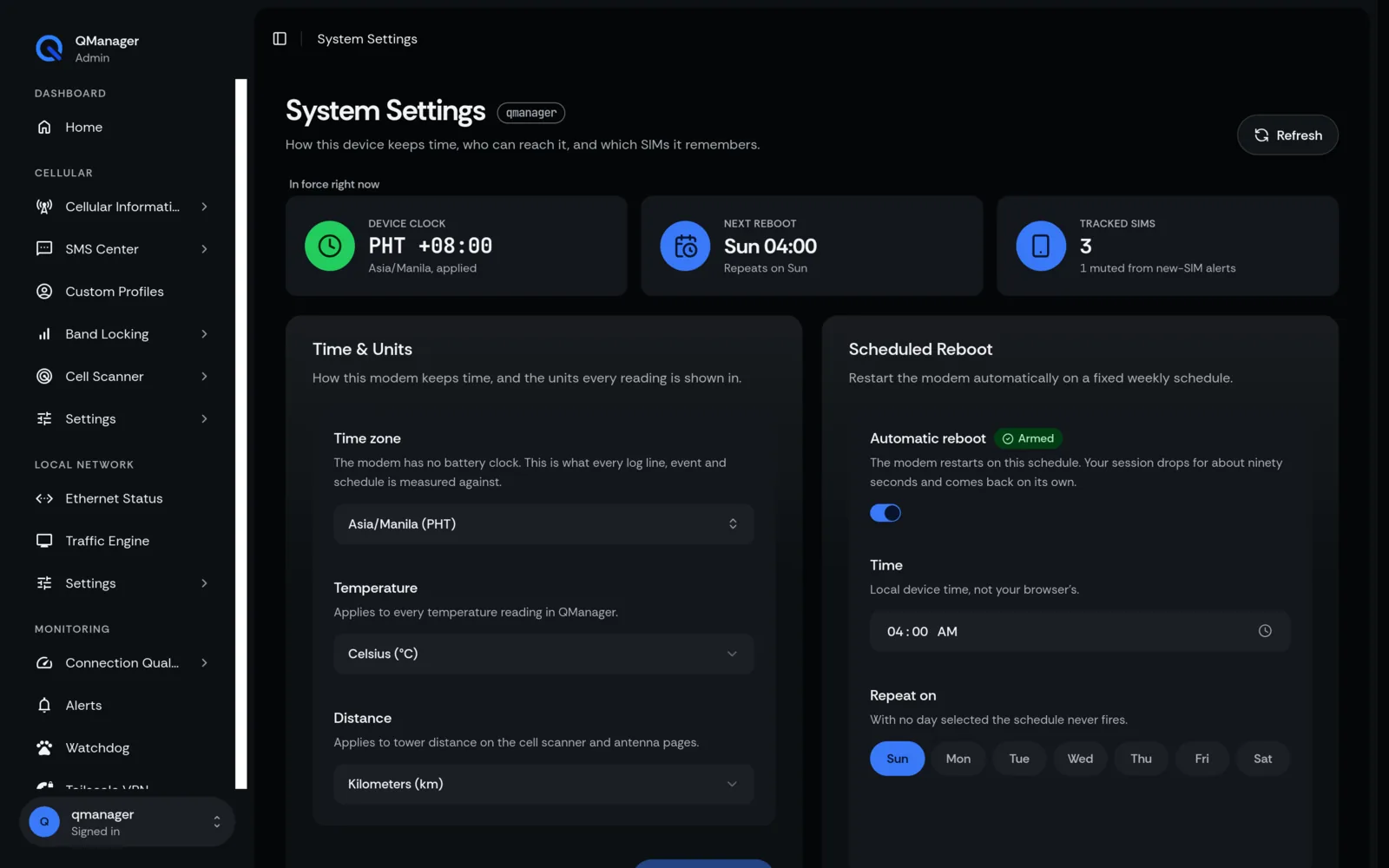

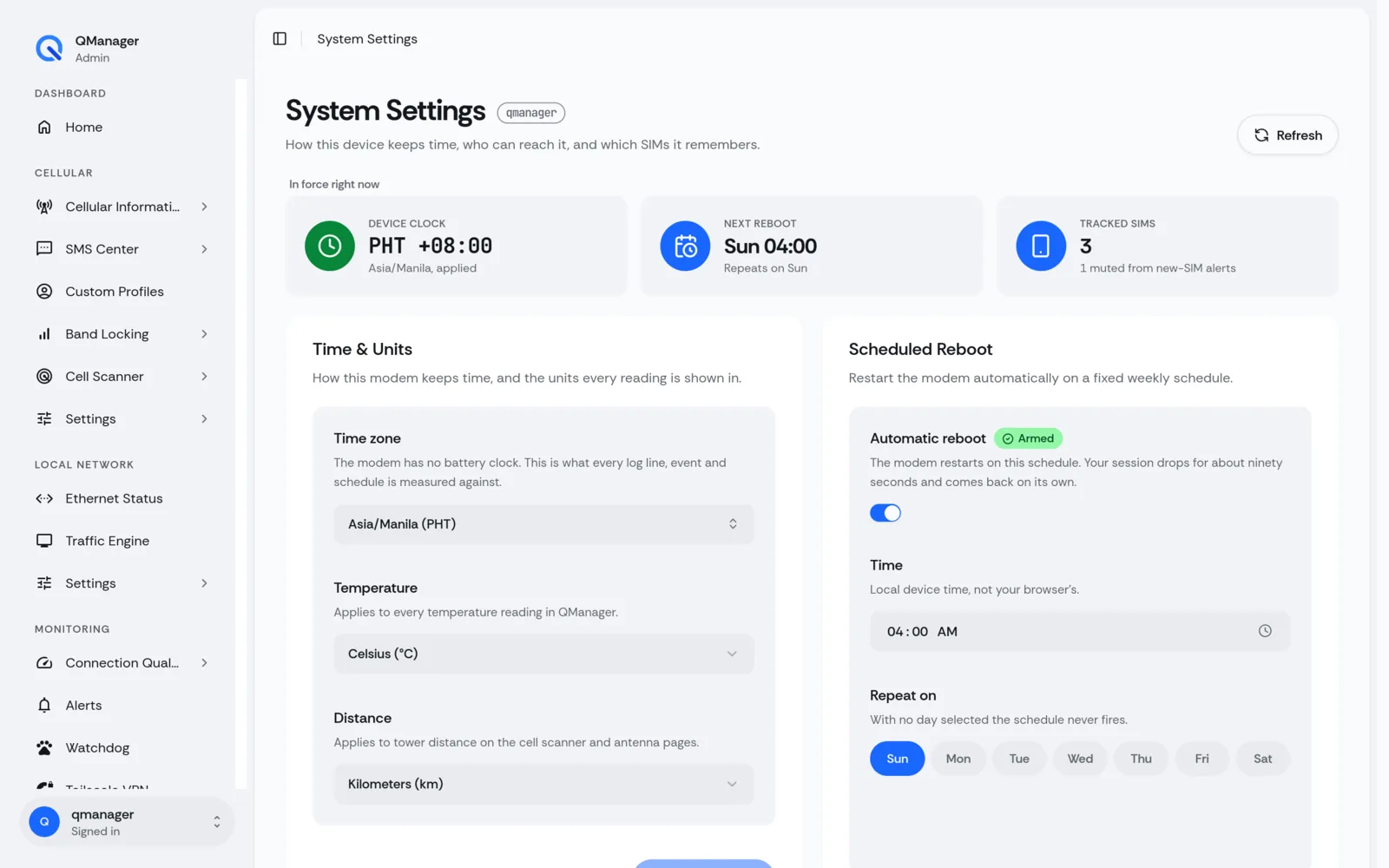

QManager RM520N System settings screen
RM520N: System Settings sets the time zone, units, scheduled reboot, and remembered SIMs.

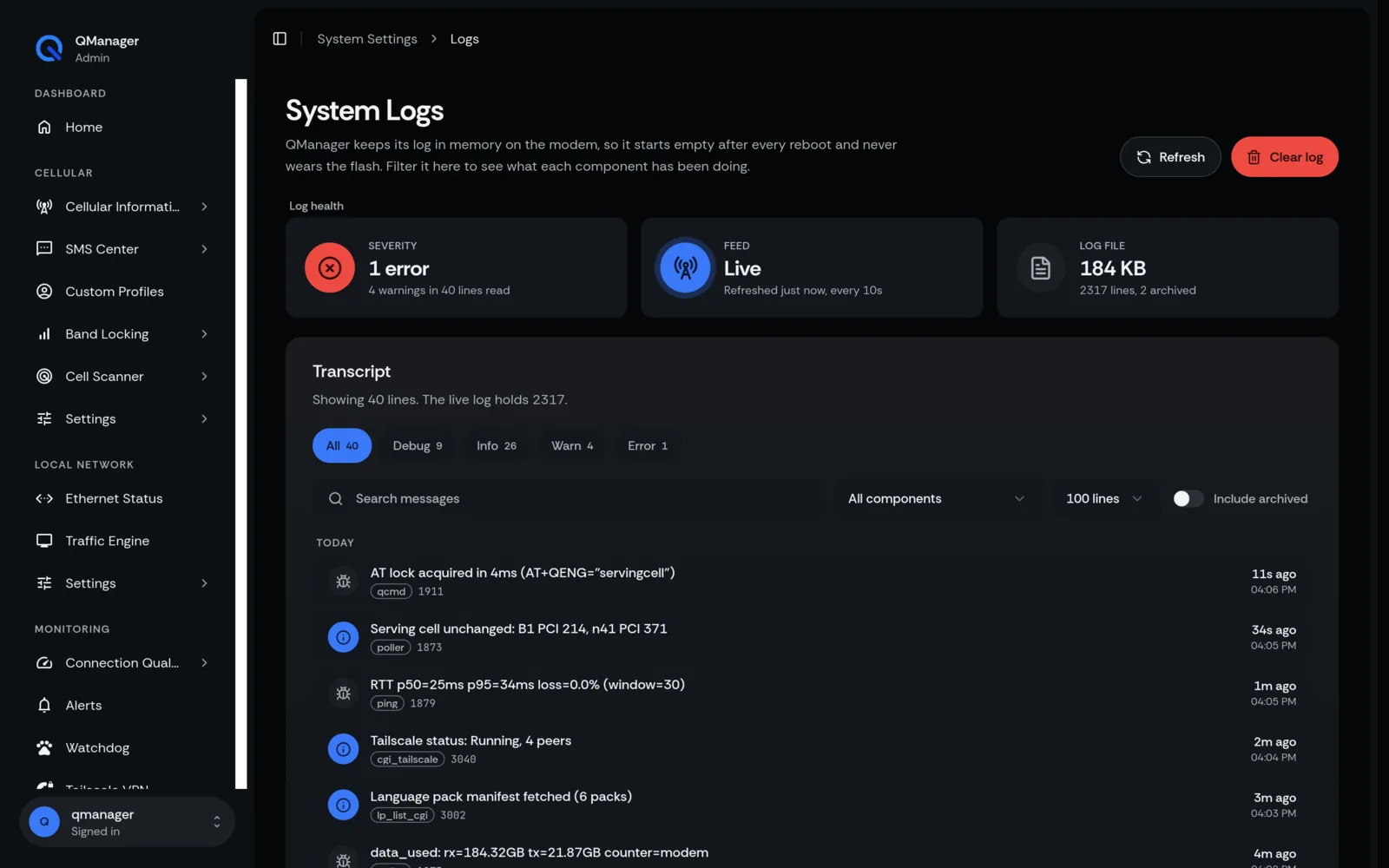

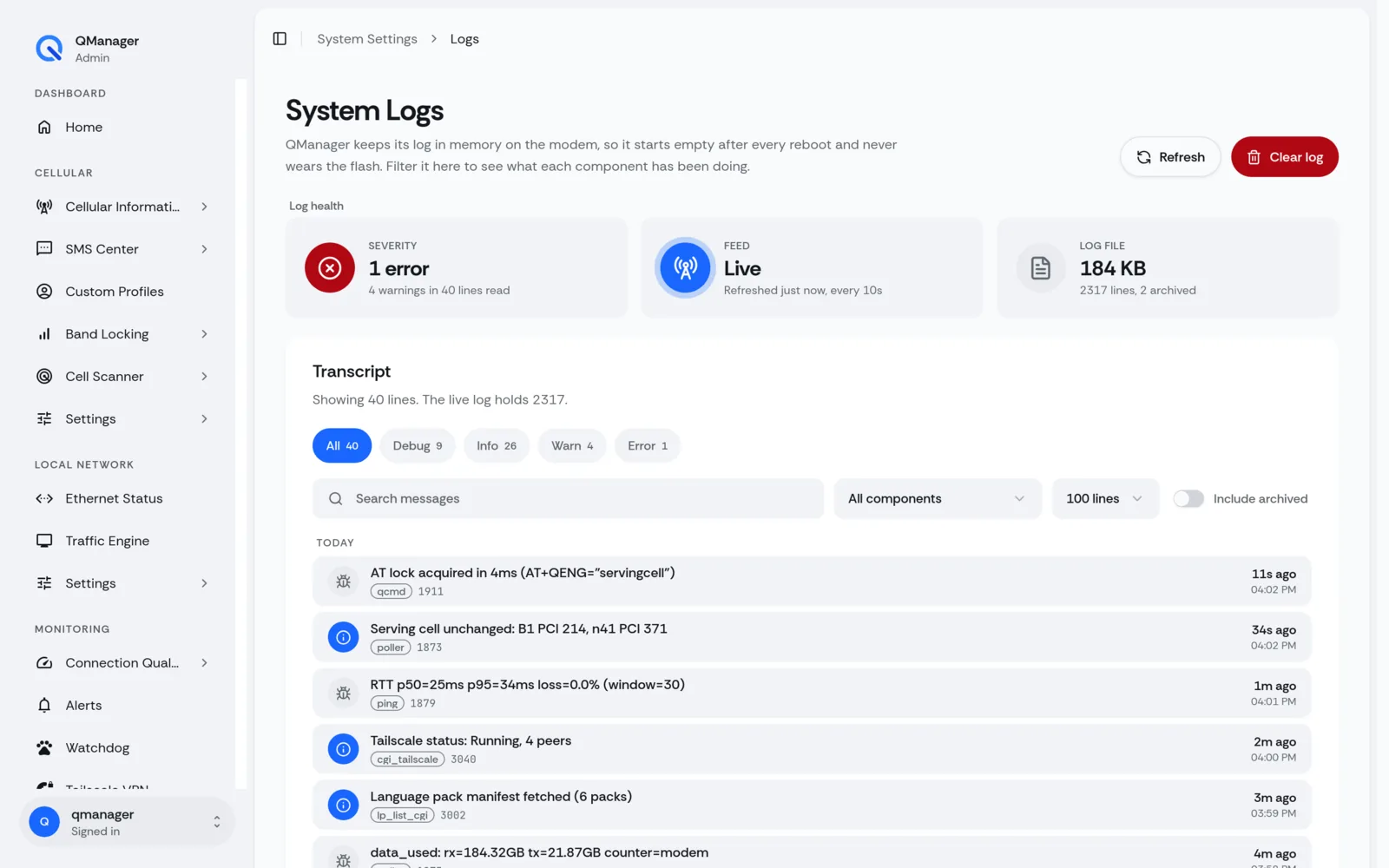

QManager RM520N System logs screen
RM520N: System Logs shows QManager's own log, filterable by level and component.
